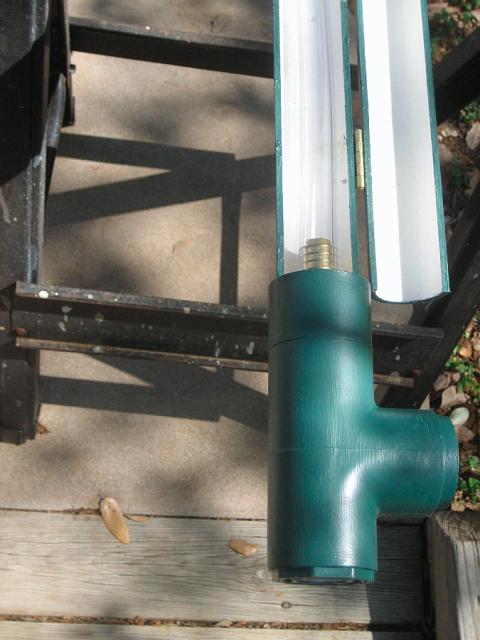

Bottom end of tank level gauge, front side, hinged cover open, clear tubing visible. Pipe from tank will be connected to bottom of tee, drain valve to side of tee. May 2, 2008.

Previous image Next image Index page




TankGauge1
  TankGauge3.JPG - Bottom end of tank level gauge, front side, hinged cover open, clear tubing visible. Pipe from tank will be connected to bottom of tee, drain valve to side of tee. May 2, 2008.
