WISY vortex filter. This device consists of a vertical cylindrical body with a tangentially positioned 4" inflow pipe near the top, a 4" outflow pipe near the bottom, and a 6" wastewater discharge pipe below that. January 19, 2010.

At first page Next image Index page

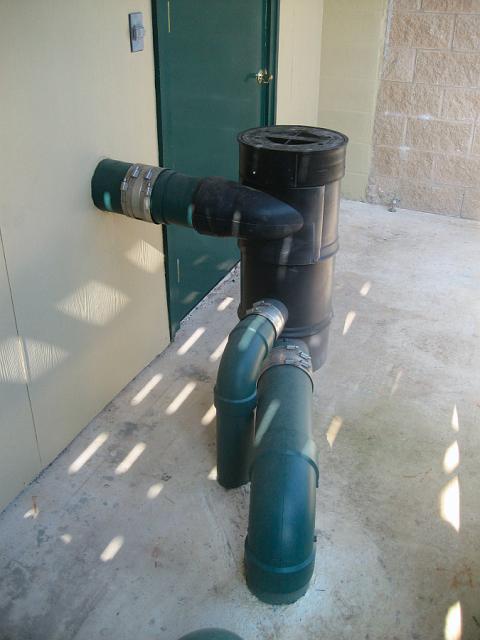

  WISY2.JPG - WISY vortex filter. This device consists of a vertical cylindrical body with a tangentially positioned 6" inflow pipe near the top, a 4" outflow pipe near the bottom, and a 6" wastewater discharge pipe below that. January 19, 2010.
